Graphite Composite Metal Gasket Sheet - High Temp & Pressure Resistant for Steam Pipes, Boilers & Industrial Sealing Applications with Excellent Thermal Stability

Heavy-Duty Graphite-Metal Laminate Gasket Sheets for Extreme Industrial Environments

Seeking a durable sealing solution for steam lines, boilers, or high-pressure equipment? Our graphite composite metal gasket sheets are engineered to meet the toughest industrial demands. These sheets are crafted to withstand extreme thermal and mechanical stress, making them ideal for sealing in challenging conditions such as thermal cycling and pressurized steam systems.

Core Advantages

Rugged Multi-Layer Construction:

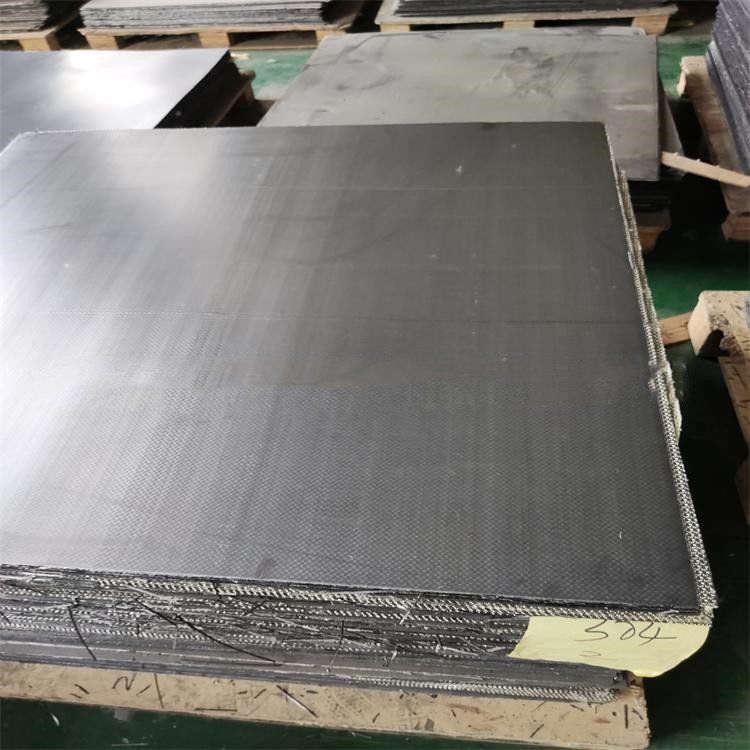

Each sheet is made by laminating flexible graphite layers on both sides of a perforated metal core, typically 0.2–0.25mm carbon steel (tinplate), with options including stainless steels like SS201, SS304, and SS316. Graphite content is available in purities of 95% to 99%, allowing customization based on specific operating conditions.

Unmatched Thermal & Pressure Stability:
Designed to perform in environments with elevated temperatures and intense pressure, these gasket sheets hold their integrity even under rapid thermal changes, ideal for turbine systems, exhaust manifolds, and pressure vessels.

Superior Seal Integrity:
Excellent surface adaptability minimizes the risk of leaks. With robust anti-delamination performance and high mechanical resilience, these sheets are a reliable, cost-effective choice for long-term industrial use.

Resistant to Oils and Chemicals:
These gaskets also provide excellent resistance to oils, making them suitable for applications such as cylinder head sealing and engine component gaskets.
